Metal Detector

X-TERRA ELITE

$479.00
In stock
SKU
3707-0002

FEATURES

SIMPLE TO USE

CHOICE OF COILS

MULTI-IQ MINELAB DEPTH

RICH AUDIO

FULLY WATERPROOF

OVERVIEW

MULTI-IQ, FULLY WATERPROOF, TREASURE DETECTOR

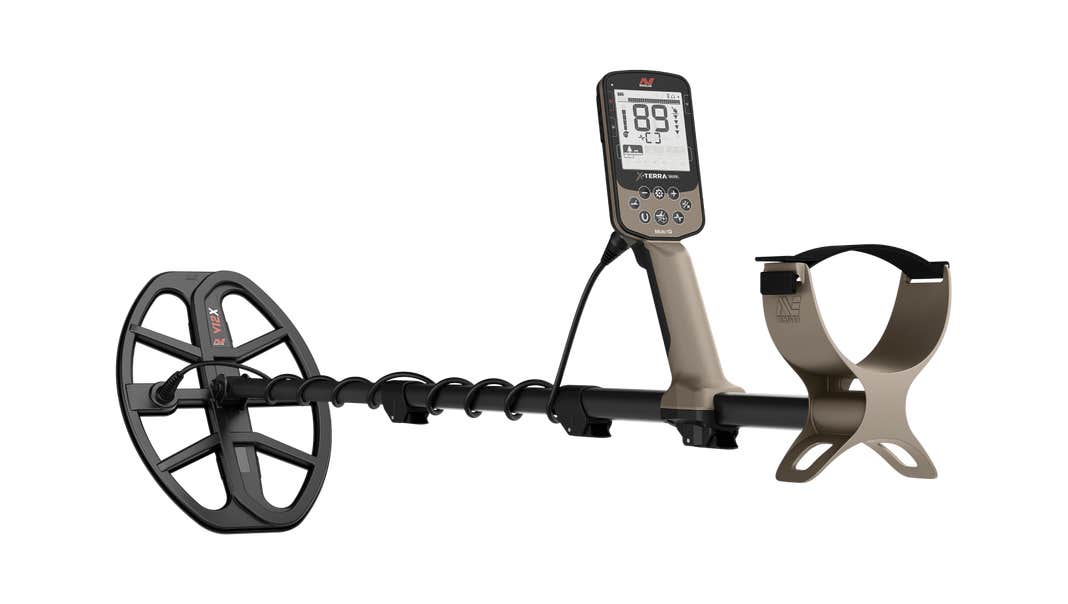

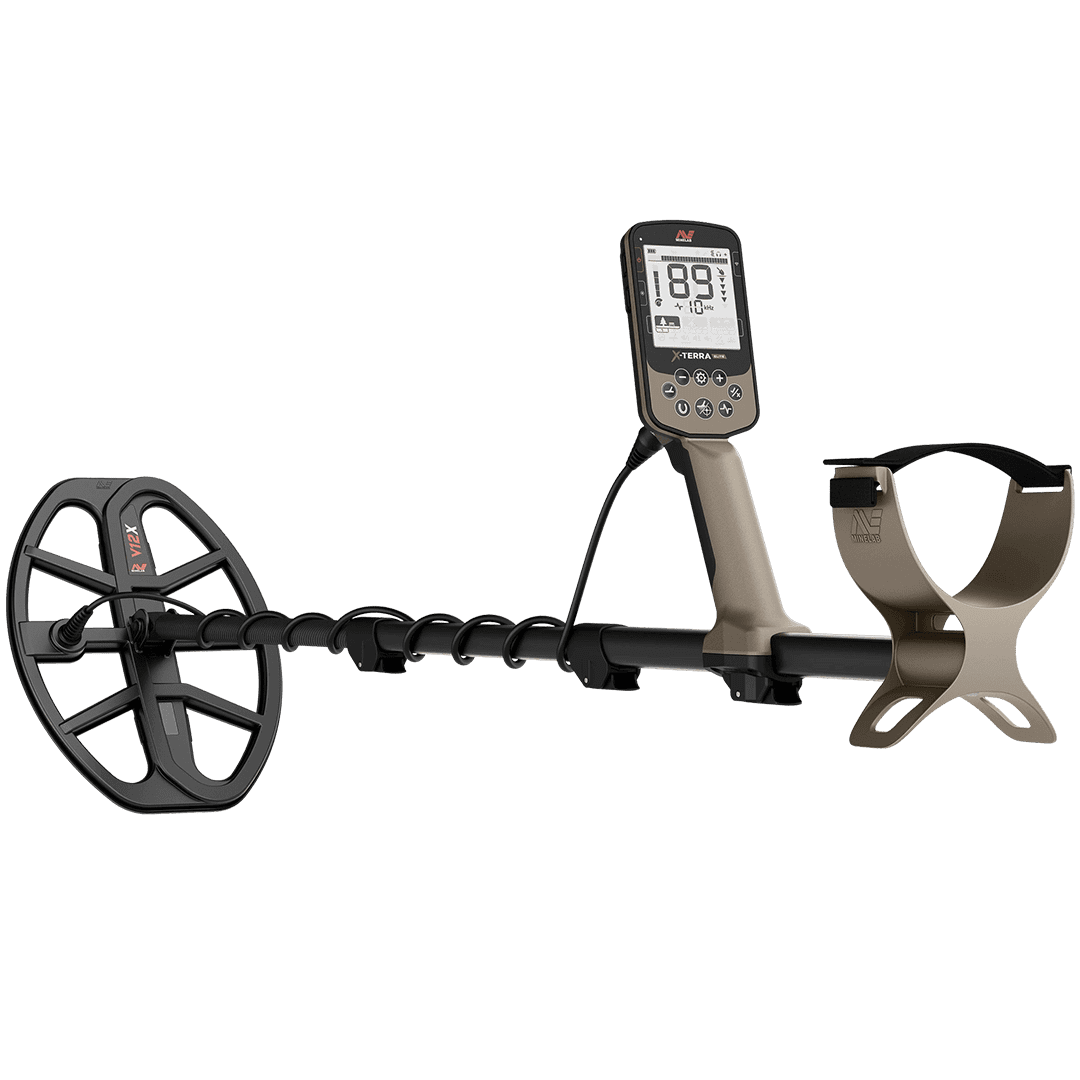

X-TERRA ELITE

Discover the all-new Minelab X-TERRA ELITE series powered by Multi-IQ —  a breakthrough in treasure detection combing cutting-edge technology and affordability. Designed for the savvy hunter in search of a fully waterproof, feature-rich machine with proven Multi-IQ technology, the X-TERRA ELITE stands unbeatable.

No need to compromise, X-TERRA ELITE offers superior All-tone Audio, extreme sensitivity and precision, and advanced Iron Control.

The X-TERRA Elite Expedition Pack includes a V12X Coil with Skidplate, a V8X Coil with Skidplate and ML-85 Wireless headphones.

MULTI-IQ

With Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Nothing goes undiscovered and no terrain is off limits. Unearth the power of X-TERRA ELITE powered by Multi-IQ.

SEARCH MODES

Choose between 2 x Park, 2 x Field and 2 x Beach pre-programmed Search Modes. No terrain is off limits.

RICH AUDIO

With multiple tone audio, the sound of treasure is clear. X-TERRA ELITE’s all-tone audio means you’ll not only ‘hear’ if a target is trash or treasure but you’ll also be able to gauge its size and depth simply by listening.

1      Power ON/OFF

2      Backlight & Flashlight Settings

3      Backlit Keys for Night Mode

4      Detect Mode Button

5      All-Metal Shortcut

6      Pinpoint/Detect Button

7      Wireless Audio Control

8      Sensitivity & Setting Control

9      Accept / Reject Button

10    Frequency Select Button

EXTREME PRECISION

The Multi-IQ® engine delivers Stable IDs for even the deepest targets. Recover even the faintest echoes of treasure with 25 levels of sensitivity — when you’ve got a target, switch to Pinpoint to zero-in further.

1      Built-in Speaker

2      Flashlight


     3      3.5 MM Headphone Socket
              with Waterproof Cap

4      Low Latency Wireless Audio


     5      Magnetic USB Charging
             Connector

6      Adjustable Handgrip

7      Handgrip Vibration

FULLY WATERPROOF

With waterproof control pod and coil to 16 ft, take X-TERRA ELITE anywhere — land or water — and own the ground beneath your feet.

SIMPLE TO USE

A large LCD display and intuitive user interface makes it easy for beginners to get started right out the box, and seasoned hunters to fine-tune settings quickly and easily.

IRON CONTROL

When it’s time to take command of your hunt and sort treasure from junk, X-TERRA ELITE offers versatile 4-level Iron Bias and nuanced 25-level Iron Volume settings.

CHOICE OF COILS

X-TERRA ELITE offers an array of waterproof coils and is compatible with V12X™ 12"x9" Elliptical Double-D (included), V8X™ 8"x5" Elliptical Double-D, and V10X™ 10"x7" Elliptical Double-D coils (accessories) so you’ll be prepared for any terrain. X-TERRA ELITE is also compatible with all EQUINOX® series coils.

LIGHTING AND VIBRATION

The daylight may have ended, but that doesn’t mean your hunt has to — with Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration you can power on long after the sun has gone.

LOUD AND CLEAR AUDIO

Enjoy the crystal-clear audio with In-Built Speaker (included) or lightning-fast Low Latency Wireless Headphones, Wired Headphones, and Waterproof Headphones (accessories).

BUILT TO LAST

Because we’re committed to leading the pack for performance and support, X-TERRA PRO by Minelab is backed by Minelab’s global network and up to 3-year warranty.

ACCESSORIES INCLUDED

V12X™ DOUBLE-D COIL

TECHNICAL SPECIFICATIONS

SEARCH MODES
Park, Field, Beach

ALL-METAL SHORTCUT
Yes

CUSTOM SEARCH PROFILES
6

OPERATING FREQUENCIES (kHz)
Park and Field: Multi‑IQ, 15 kHz | Beach: Multi‑IQ

NOISE CANCEL
Auto (19 Channels)

GROUND BALANCE
Auto, Manual, Tracking

SENSITIVITY
1 to 25

TARGET VOLUME
0 to 25

THRESHOLD LEVEL
0 to 25

THRESHOLD PITCH
Fixed

TARGET IDENTIFICATION (TID)
119 segment notch discrimination: Ferrous: −19 to 0 | Non‑ferrous: 1 to 99

TARGET TONES
1, 2, 5, All Tones (AT), Depth (dP)

TONE BREAK
Ferrous (t1)

TONE VOLUME
Tone 1 adjustable: 0 to 25

RECOVERY SPEED
1 to 3

IRON BIAS
-1 to 2

DEPTH INDICATOR
5 levels

DISCRIMINATION SEGMENTS
30 segments (in increments of 4 Target ID's)

PINPOINT MODE
YES

WIRELESS AUDIO
YES

LENGTH (APPROX)
Collapsed:  25 in (630 mm) Extended:  54 in (1380 mm)

WEIGHT
2.9 lbs (1.3 kg )

DISPLAY
Monochrome LCD

DISPLAY AND KEYPAD BACKLIGHT (RED)
Off, High, Low

FLASHLIGHT
On, Off

VIBRATION (MASTER AND FERROUS)
On, Off

SUPPLIED COIL
V12X 12" Double-D Elliptical coil with skid plate

AUDIO OUTPUT
In-built loudspeaker, Wired 3.5mm (⅛") headphones, Wireless headphones

BATTERY
3.7V/5100mAh Internal Lithium-Ion battery

ADDITIONAL INCLUDED ACCESSORIES
Getting Started Guide, Charging Cable

WATERPROOF
Waterproof to 16 ft / 5 m , IP68

OPERATING TEMPERATURE RANGE
 +14ºF to +104ºF (-10ºC to +40ºC)

STORAGE TEMPERATURE RANGE
 -4ºF to +158ºF (-20ºC to +70ºC)

KEY TECHNOLOGIES
Multi-IQ®

DOWNLOADS

FAQ

IS THE MULTI-IQ TECHNOLOGY IN THE X-TERRA ELITE THE SAME AS OTHER MINELAB MULTI-IQ DETECTORS?

Yes, the MULTI-IQ technology in the X-TERRA ELITE is the same as the MULTI-IQ technology used in other MINELAB metal detectors.

X-TERRA ELITE includes a 15kHz single frequency option for the Park and Field modes.

SHOULD I PURCHASE AN X-TERRA ELITE OR A VANQUISH 540? THE PRICES ARE SIMILAR.

VANQUISH series are a switch-on and go type detector designed to have great performance but still be very easy to use with minimal setting adjustments. This is possible as the MULTI-IQ processor does all the hard work for you.

X-TERRA ELITE is designed for the more committed detectorist looking for a well priced detector with excellent performance. Users have more control and settings adjustments allowing detectorists to tune the detection performance. The X-TERRA ELITE is waterproof to 5 meters (15 feet) superior performance when compared to any other single frequency detector currently on the market.

CAN WE USE THE ORIGINAL X-TERRA COILS ON THE X-TERRA ELITE?

VX or EQUINOX series coils can be used with the X-TERRA ELITE but no other Minelab branded coils can be used including previous X-TERRA 305, 505 & 705 series coils.

WHAT ACCESSORY COILS ARE AVAILABLE?

The X-TERRA ELITE comes with a V12X 12” Elliptical Double-D coil in the box, you can purchase the below accessory coils from your local Minelab dealership.

V8X 8” Elliptical Double-D coil (3011-0457)
V10X 10” Elliptical Double-D coil (3011-0458)
V12X 12” Elliptical Double-D coil (3011-0459)
EQX06 / EQX|06 (6” round Double-D coil) (3011-0333)
EQX11 / EQX|11 (11” round Double-D coil) (3011-0334)
EQX15 / EQX|15 (15”x12” Double-D coil) (3011-0335)

HOW DOES X-TERRA ELITE PERFORMANCE COMPARE WITH VANQUISH SERIES AND X-TERRA PRO?

X-TERRA ELITE will out-perform the VANQUISH and X-TERRA PRO detectors in all terrains on most targets. Performance may be similar in some circumstances but will differ depending on ground mineralisation levels but more specifically the type of metal each target consists of.

HOW DOES X-TERRA ELITE PERFORM AT THE BEACH OR IN SALTY CONDITIONS?

The X-TERRA ELITE provides unprecedented performance in salty conditions. There are 2 beach modes to ensure stability in both wet and dry salty environments.

CAN I USE WIRELESS HEADPHONES WITH MY X-TERRA ELITE?

Yes, you can purchase the Minelab WM09 wireless module, ML85 headphones or ML105 headphones as all of these are compatible with the X-TERRA ELITE. (Please note that the X-TERRA ELITE EXPEDITION model includes the ML85 headphones in the box)

CAN I USE BLUETOOTH HEADPHONES WITH MY X-TERRA ELITE?

The X-TERRA ELITE uses a proprietary wireless audio that is not compatible with any current versions of BLUETOOTH. The Minelab WM09, ML85 or ML105 headphones are compatible with the X-TERRA ELITE and are available from your local authorised Minelab dealership.

WHAT ARE THE DIFFERENCES BETWEEN THE DETECT MODE SEARCH PROFILES?

X-TERRA ELITE

Park 1 provides a default MULTI-IQ transmit frequency and is optimised for detecting modern coins and larger jewellery. This is a good mode to learn the X-TERRA ELITE before experimenting with other settings.

Park 2 provides a default MULTI-IQ transmit frequency and is optimised for detecting fine jewellery and smaller targets in trash infested areas. Recovery speed in Park 2 is increased to clearly identify good targets masked by iron trash.

Field 1 provides a default MULTI-IQ transmit frequency and is optimised for detecting modern coins and general detecting. It has a high trash rejection which makes it an ideal detect mode for areas containing coke.

Field 2 provides a default MULTI-IQ transmit frequency and is optimised for locations with high target and trash densities. This mode is great for coins on edge or sitting at greater depths. It has a high trash rejection which makes it an ideal detect mode for areas containing coke.

Beach 1 provides a default MULTI-IQ transmit frequency and is optimised for dry and wet sand. Beach 1 mode has a lower recovery speed for better depth across all targets and is good for detecting coins and small to large jewellery.

Beach 2 provides a default MULTI-IQ transmit frequency and is optimised for underwater usage where a very strong salt signal is present. To compensate for the high salt content Beach 2 has a lower transmit power. Beach 2 can also be used in dry soils that have a high salt content.

HOW LONG DOES THE LI-ION BATTERY LAST ON A SINGLE CHARGE?

Typical runtime, from a full charge using wired headphones, is approximately 12 hours. The X-TERRA ELITE detector can also be powered directly from any USB Power Bank that supports 0.5A or 2A (@ 5V) output capability. This effectively gives a continuous runtime only limited by the capacity of the power bank.

CAN I USE QUICKCHARGE™ USB CHARGERS?

The X-TERRA ELITE detector supports charging from devices that comply to the USB 2.0 standard. QuickCharge™ is a proprietary standard develop by Qualcomm that uses a higher voltage and is not compatible with X-TERRA ELITE detectors.

HOW LONG DOES THE LI-ION BATTERY TAKE TO FULLY CHARGE?

The charge time, from completely flat to 100%, is approximately 4 hours when charged with a high capacity charger (>1.7A @ 5V)



WHAT IS THE LIFESPAN OF THE BUILT-IN LI-ION BATTERY?

Longevity for all batteries depends on a number of factors that are often controllable to some degree by the user; such as temperature, charge levels when stored, charge cycles etc. The most common cause of reduced life of Li-ION batteries is keeping a fully charged battery at elevated temperatures.

As with all components used in our detectors, we stringently source only modern high quality components from responsible vendors. We do not expect users to experience any battery issues over years of use. Our experience with the CTX 3030 and GPZ 7000 detectors which both use Li-ION batteries is that the vast majority of users have never needed to purchase a replacement battery.

HOW CAN I MAXIMISE MY BATTERY LIFE?

  • Avoid charging or using in extreme temperatures.
  • Avoid rapid extreme temperature swings.
  • Use only USB chargers from reputable manufacturers. Avoid so-called ultrafast chargers from third-parties that claim to fully charge Li-ION batteries in less than one hour.
  • Before storing the detector for prolonged periods, the battery should be charged to approximately 50-60%. On the X-TERRA ELITE Battery Status Indicator, 2-bars is the optimum charge for prolonged storage. Maintaining the 2-bar charge periodically during extended storage is also advisable. Extended storage in temperatures less than 30oC (86’F) will also minimize degradation to Li-ION battery life.

WHICH USB CHARGERS CAN I USE TO CHARGE THE X-TERRA ELITE?

Use only reputable and certified USB Chargers when charging the X-TERRA ELITE battery as detailed below:

  • High Quality 2A USB Chargers with a capacity of 2A @ +5V will yield a full charge time of approximately 4 hours. a. Typical examples are Apple™ and Samsung™ branded chargers.
  • Standard USB 2.0 Port with a capacity of 0.5A @ +5V will yield a full charge time of approximately 18 hours.
  • Any USB 2.0 Port on a computer
  • A USB Power bank

CAN I REPLACE THE BATTERY?

The Li-ION battery contained in the handle is replaceable and covered under warranty for a period of 1 year (12 months) from the date of purchase. Minelab recommends using an Authorised Service Centre to avoid potentially damaging the waterproof seal and voiding the detector warranty.

CAN I DETECT WITH A USB POWER BANK?

Yes, when detecting on land, without any limitations. However, the detector must not be used underwater whilst charging or when connected to a power bank.

DOES THE BATTERY CHARGE WHEN I USE A USB POWER BANK?

Yes. If the detector is being used, when powered by a USB power bank, the battery may charge at a slower rate if there is enough spare capacity in the power bank.

CAN I CONTINUE TO USE THE X-TERRA ELITE IF THE INTERNAL LI-ION BATTERY RUNS FLAT?

Yes. Connecting the X-TERRA ELITE to a USB power bank will allow you to continue to use the detector even if the battery is low/flat. The power bank will charge the detector if there is any residue power to charge the battery.

SHOULD I WASH MY X-TERRA ELITE DETECTOR AFTER USING AT THE BEACH?

Yes. It is good practice to wash the detector with clean fresh water after detecting in water or on the beach. Never use abrasives or solvents to clean the detector.

Whenever washing or using your detector underwater always ensure that the plastic bung on the rear of the control pod is firmly screwed into the headphone jack.

DO I NEED TO PUT GREASE ON THE DETECTOR BEFORE USING IN WATER?

No. It is not necessary to lubricate or grease any part of the detector, including the waterproof seals. Using any petroleum-based grease will damage the waterproof seals and void the warranty.

I DETECT IN WATER. WHICH HEADPHONES SHOULD I USE?

If deep wading or fully submerged, we recommend using only Minelab Waterproof Headphones. These have a specially engineered connector that forms a waterproof seal when used with the X-TERRA ELITE. These headphones are available as an accessory (Part Number: 3011-0372).

CAN I RESET AN INDIVIDUAL SEARCH PROFILE?

Yes, there is no need to perform a full factory reset. Individual Search Profiles can easily be returned to their factory preset settings. Only the local settings will be reset and any global settings will remain in their last-use state.

  1. Navigate to the Detect Mode Search Profile you wish to reset.
  2. Press and hold the Detect Mode button for 5 seconds.
  3. SP will appear on the Target ID Display when a Detect Mode Search Profile is reset.
